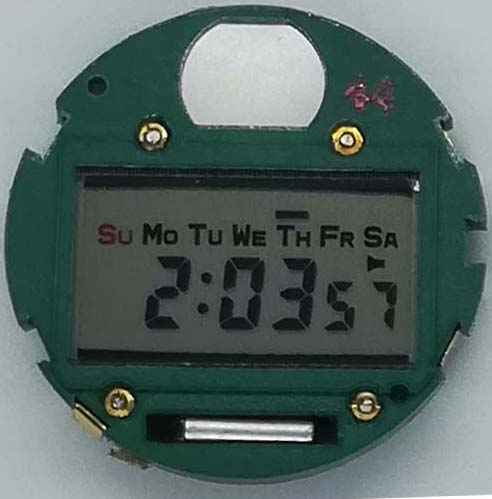

module 44 (1)Model: 44 (for Men's watch)
Battery: 2 x
 LR41 Face: LCD 6 digit + week  Light: Yes Tritium
Year: 1980 Buttons: Three buttons are used: top right, bottom right, top left.
Function: It displays hours, minutes, seconds, day and the month. It does not feature an integrated light, but instead uses what is known as tritium illumination.
Info:
This module is used in the following model TI-801-01, TI-801-02.

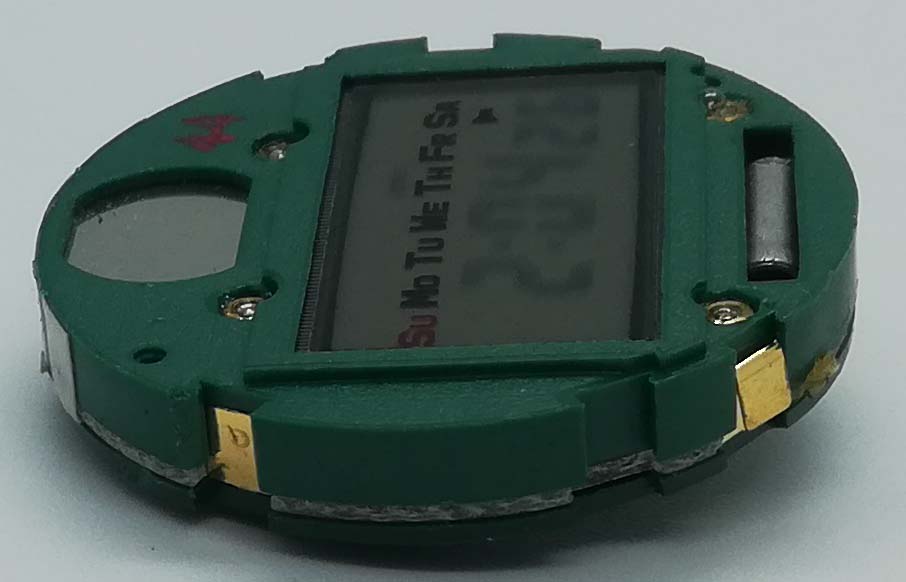

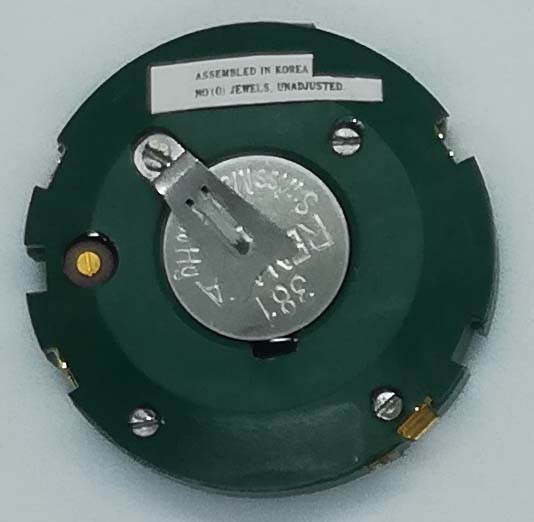

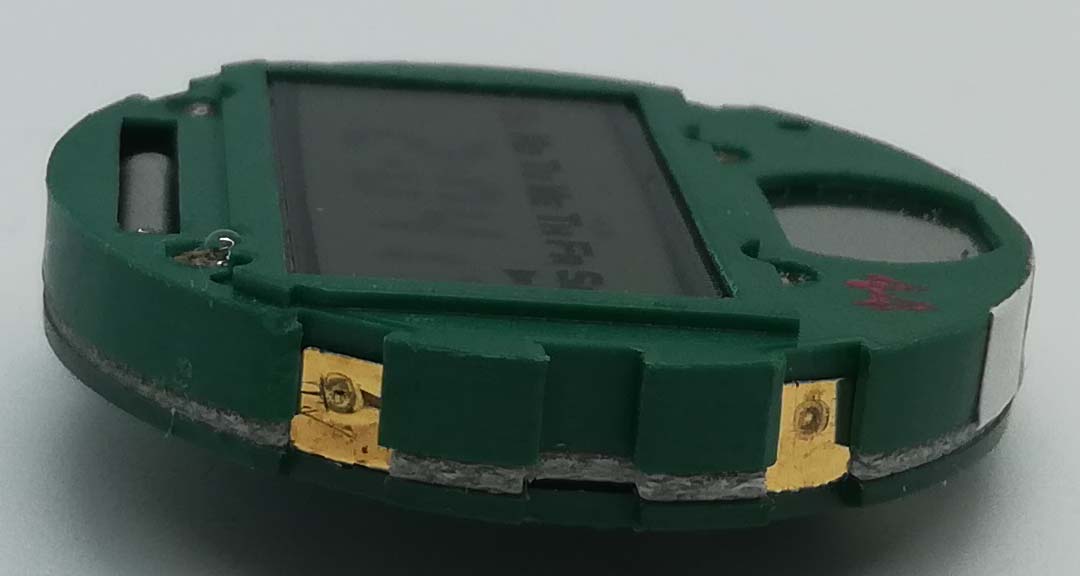

module 44 (2)module 44 (3)module 44 (4)Here you can see the specific contact activated by pressing each button. There are three buttons: one at the top right, one at the bottom right, and one at the top left. The top-right button allows you to select the date and seconds, and to view the alarm; the bottom-right button is used to start or stop the stopwatch and its various functions; the top-left button is used to configure the alarm.
